Standard type (trapezoid): Lamella

The standard Doctor Blade has exactly the same blade thickness. Within the service life of the Doctor Blade, it is consistent with the contact area of the drum, so the tone is completely consistent. The blade part of the unique polishing process can make the Doctor Blade fit with the drum quickly at the beginning of printing, reducing waste.

In addition, our general coating Doctor Blade and high-end coating Doctor Blade head shape is also standard type, attached here their characteristics:

General coating Doctor Blade: carbon steel substrate with coating on the surface, the coating provides excellent corrosion resistance and oxidation resistance. Also suitable for the use of corrosive ink printing, in the process of use, the coating can also compensate for the ink impurities in the blade damage, thus reducing color change and the appearance of stripes, Dekojie’s ordinary coating Doctor Blade is very suitable for coating applications.

Medium and high end coated Doctor Blade: the blade of the blade has a super hard coating which greatly prolongs the service life of the Doctor Blade. After using the medium and high end coating Doctor Blade, it can effectively reduce the printing problem, provide clear ink scraping effect, corrosion resistance, reduce the towing line effectively, and reduce the waste significantly. With less downtime and higher printing efficiency, the printing and recycling of the printing cylinder is also reduced. This Doctor Blade has a very good effect when using UV ink.



---

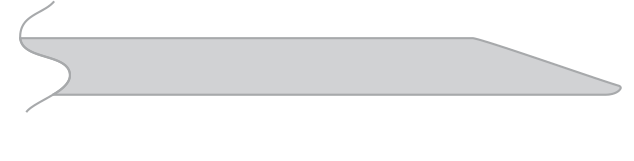

Diagonal Bevel

The blade shape of the larger angle design makes the blade wear smaller, and the reduction of the contact area can provide a clear ink scraping effect. The larger angle design can also reduce the blade fracture, with degrees ranging from 4 °to 15 °. Suitable for short-plate layering printing.



---

Arc Flexolife

* Special design to achieve the best printing effect in high-speed operation

: reduce wear and tear of ink Doctor Blades

: reduced downtime

: reduction of flying ink

: optimize printing effect and reduce wear of roller



---

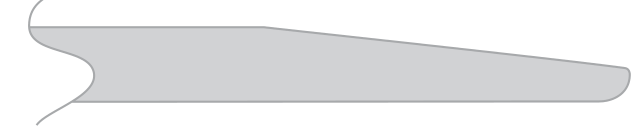

Multi-tough multiblade



3 °oblique blade, better stability, reduced bending under high pressure

Reduce fog plate phenomenon
